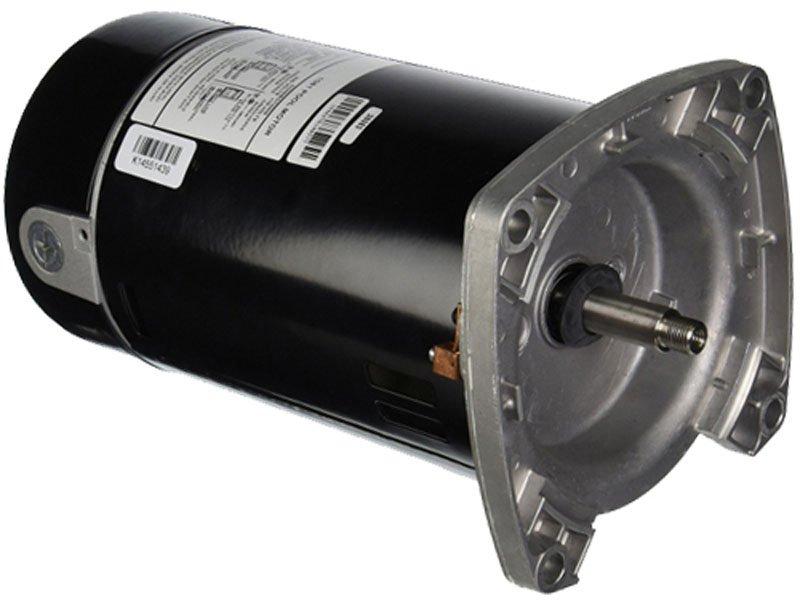

U.S. Motors - Emerson 48Y Square Flange 1-Speed 2HP Full-Rated Pool and Spa Motor
$409.99
The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
More Details
subscription.product.label
The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
- Two compartments
- Shaft Threads 1/2-20 UNF-2A
- 50 Degrees Celsius Ambient
- 1081 Design
- Continuous Duty
- Voltage Selection Device (Dual Voltage Only)
- Service Factor: 1.25
- RPM: 3450
- Length without Shaft: 12.78
- 10.4A 208-230V
The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its capacitor start design runs on high efficiency and performs continuously. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 48 Y-Frame Square Flange motor features a smaller 48 frame size and has an open drip proof enclosure that keeps water from flowing into the motor. It also has a rear mounted fan that keeps the motor cool during operation. Its 5.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 48 Y-Frame Square Flange is a single speed pool and spa motor and its 2 HP delivers optimum performance.
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Square Flange motor is built to last
Advanced in its design, the Emerson 48 Y-Frame Square Flange comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 48 Y-Frame Square Flange is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Speed Settings: | Single Speed |
| Voltage: | 208 - 230V |
| Flange Type: | Square Flange |
| Horsepower: | 2 HP |
| Service Factor: | 1.25 - 1.50 |
| Rating Type: | Full-Rated |
| Product Type: | Pool Part |
| Energy Efficiency: | Standard |
| Motor Frame: | 48 Frame |
| Manufacturer: | U.S. Motors Emerson |
See Owner's Manual for details
