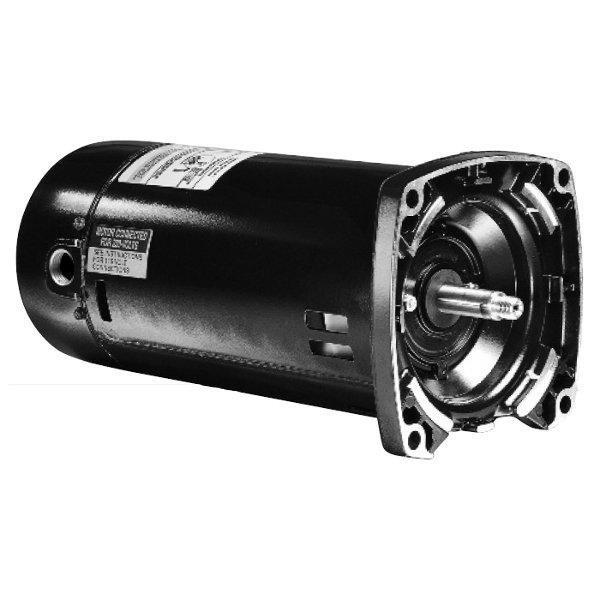

U.S. Motors - Emerson 48Y Square Flange 1-Speed 1/2HP Full-Rated Pool and Spa Motor

Item No. 627248 | Manufacturer SKU: EQC1052
Item No. 627248 | Manufacturer SKU: EQC1052
U.S Motors  Emerson 48Y Square Flange 1-Speed 1/2HP Full-Rated Pool and Spa Motor
U.S Motors  Emerson 48Y Square Flange 1-Speed 1/2HP Full-Rated Pool and Spa Motor
$176.49 Price reduced from $352.99 to

The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. More Details

subscription order icon Membership Available

The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
  • Two compartments
  • Shaft Threads 1/2-20 UNF-2A
  • 50 Degrees Celsius Ambient
  • 1081 Design
  • Continuous Duty
  • Voltage Selection Device (Dual Voltage Only)
  • Service Factor: 1.65
  • RPM: 3450
  • Length without Shaft: 10.78
  • 4.7/9.4A 208-230/115V

The Emerson 48 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its capacitor start design runs on high efficiency and performs continuously. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 48 Y-Frame Square Flange motor features a smaller 48 frame size and has an open drip proof enclosure that keeps water from flowing into the motor. It also has a rear mounted fan that keeps the motor cool during operation. Its 5.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 48 Y-Frame Square Flange is a single speed pool and spa motor and its 1/2"HP delivers optimum performance.

Single Phase
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Square Flange motor is built to last
Y-Frame
Advanced in its design, the Emerson 48 Y-Frame Square Flange comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 48 Y-Frame Square Flange motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Horsepower: 1/2 HP
Service Factor: 1.00 - 1.25
Voltage: 115V / 208 - 230V
Flange Type: Square Flange
Speed Settings: Single Speed
Rating Type: Full-Rated
Product Type: Pool Part
Energy Efficiency: Standard
Motor Frame: 48 Frame
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
