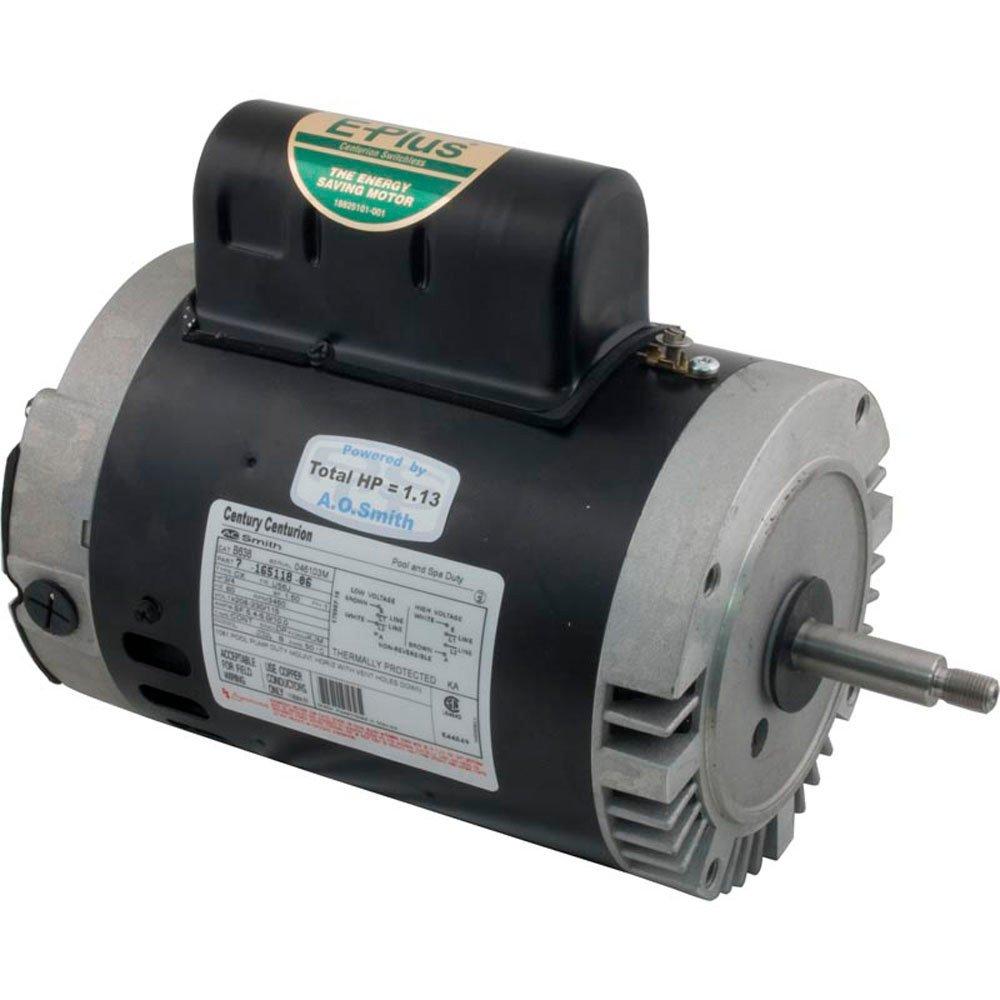

Century A.O. Smith - E-Plus Energy Efficient 56J C-Face 3/4 HP Full Rated Pool and Spa Pump Motor

Century A.O Smith  E-Plus Energy Efficient 56J C-Face 3/4 HP Full Rated Pool and Spa Pump Motor

Century A.O. Smith - E-Plus Energy Efficient 56J C-Face 3/4 HP Full Rated Pool and Spa Pump Motor

Item No. 620060
Manufacturer SKU: B638
5 out of 5 Customer Rating
The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. More Details

subscription order icon Subscription Available

$411.99

Standard Shipping - Ship To Home
Want it today?

Description

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency.
  • Ball Bearings
  • Class B Insulation
  • 304 Bearing Shaft End
  • 60 Hertz
  • Rotation: CCW Pump End
  • 5.4-5.0/10.0A 208-230/115V

Details

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient, delivering quality performance. The Century C-Face Pool and Spa Pump Motor meets industry standards with its 1081 design while providing durability with its aluminum NEMA ?C? brackets. It can withstand ambient temperatures up to 50C and equipped with an auto overload protector, a stainless steel shaft, and ball bearings, the Century C-Face Pool and Spa Pump Motor provides long lasting operation. Available in a Full-Rated model with horsepower ratings of 1/2"P to 3HP, it delivers high performance.

Highlights

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Specs

Flange Type: J Flange
Service Factor: 1.50 - 1.75
Pool Type: Spa/Hot Tub
Shaft Type: Threaded
Installation Type: Residential
Flange Type: C Flange
Voltage: 120V / 240V
Horsepower: 3/4 HP
Speed Settings: Single Speed
Service Factor: 1.25 - 1.50
Phase Type: Single Phase
Energy Efficiency: High Energy Efficiency
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Manufacturer: Century A.O. Smith
Warranty: 1-Year
Pump Speed: Single
Service Factor: 1.5
Total Horsepower: 1.13 THP


Warranty

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
