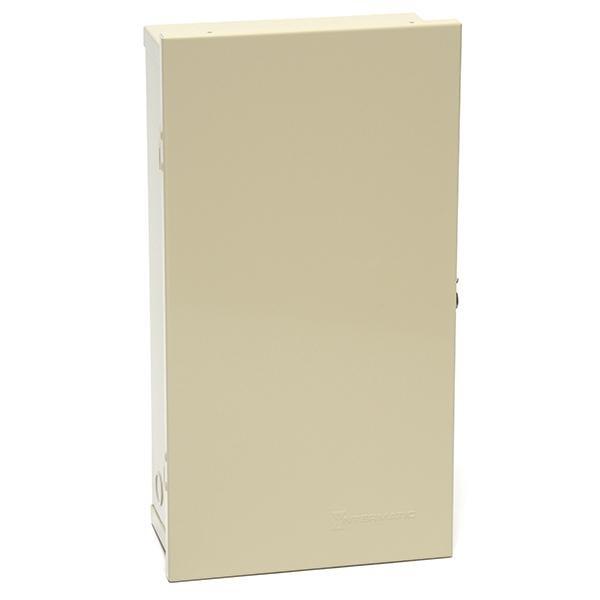

Intermatic - Dual Time Clock Pool Panel Enclosure Only without Time Clocks
$209.99
Intermatic Dual Time Clock Pool Panel Enclosure Only without Time Clocks - T21000
More Details
Membership Available
Intermatic Dual Time Clock Pool Panel Enclosure Only without Time Clocks - T21000
- Case: 16-3/4 (42.6 cm) H x 8-7/8 (22.5 cm) W x 4-3/8 (11.1 cm) D. 0.048 steel with electrostatically applied light beige finish.
- Knockouts: Five combination 1/2" - 3/4" and three 3/4 - 1 on the bottom, one combination 1/2" - 3/4" on the left side, one 3/4-1 on the back and one combination 1-3/4 x 2-3/4 knockout on the right side for mounting switches or GFCI.
- Panel Rating: 60 Amp 120/240 VAC or 120/208 VAC; Single Phase-60 Hz
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
- Agency Approval: CSA/C-US
The T20000R Series Control Panels feature an all-weather enclosure and contain a 4 circuit breaker base, an equipment grounding bar and a mechanical time switch mechanism. The circuit breaker base accepts interchangeable type breakers made by a number of different manufacturers. In addition, the enclosure has provision for installing additional switches or GFCI receptacles on the side and inside.
| Parts and Hardware: | Housing |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
