Raypak - Digital 200,000 BTU, Natural Gas, Pool Heater for 2,000'-6,000' Elevation - P-R206A-EN-C #51

Item No. 317597 | Manufacturer SKU: 009220
Item No. 317597 | Manufacturer SKU: 009220

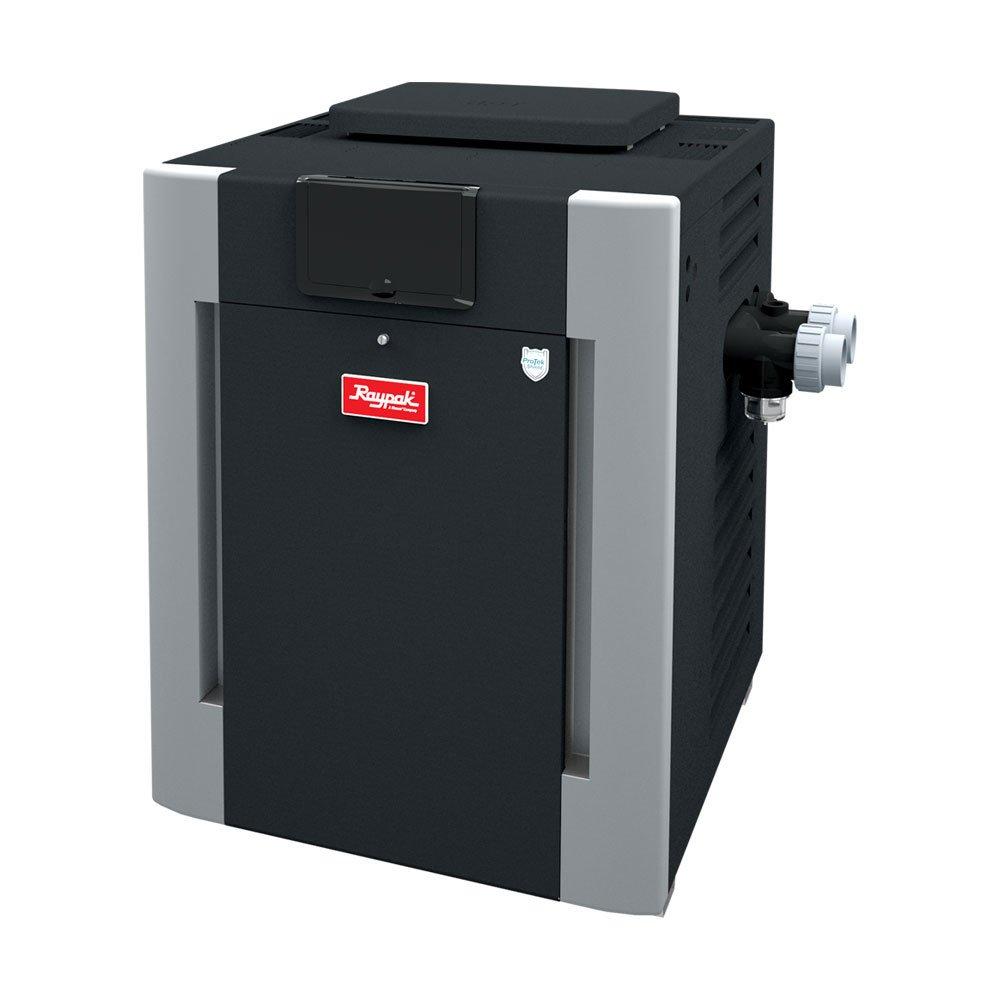

Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51
Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51
Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51
Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51 Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51 Raypak Digital 200,000 BTU Natural Gas Pool Heater for 2,000'-6,000 Elevation P-R206A-EN-C #51
$2,678.00

Raypak Digital 200,000 BTU Natural Gas Pool Heater, 2,000'-6,000' Elevation, P-R206A-EN-C #51, 009220 More Details

subscription order icon Membership Available

Raypak Digital 200,000 BTU Natural Gas Pool Heater, 2,000'-6,000' Elevation, P-R206A-EN-C #51, 009220
  • Part Number: 009220
  • Model Number: P-R206A-EN-C
  • LCD digital display provides accurate temperature
  • Monitors operational status as well as service diagnostics
  • High-wind resistance
  • Corrosion-resistant headers
  • Unitherm governor prevents condensation
  • PVC plumbing directly to the heater
  • Small footprint
  • Can be installed on combustible surface
  • Model Number: P-R206A-EN-C #51
  • 2,000'-6,000' Elevation
  • Important: Instructions for Accepting Your Freight Shipment

Raypak digital heaters have an electronic ignition, a digital thermostat and Polymer headers. They are gas powered and suitable for use with swimming pools and spas. These heaters are designed for residential application and combine durability and smart design to be some of the best on the market. Their attributes include exceeding federal and state fuel efficiency standards, high flow rates, condensation protection and wind-resistant design to withstand the elements for years to come.

Instructions for accepting your freight shipment

Controlled Thermostat
The Raypak Digital gas heater comes with a microprocessor based thermostat control. This control allows you to set your swimming pool or spa temperature precisely at your favorite setting just by pressing an up or down temperature control button. The digital display gives you a constant read out of your swimming pool water temperature.
Self Diagnostic
Troubleshooting a gas heater has never been easier. The Raypak Digital has on-board diagnostic controls that let the user and the service professional know what is going on with the heater at all times. In the event that you would ever have a problem with the heater, the digital display will show where the problem is in the control circuit.
Remote Compatible
The Raypak Digital is compatible with most major swimming pool control and remote systems on the market today. Any two-wire or three-wire remote can connect to the Raypak Digital and be integrated into the pool control system of your choice.

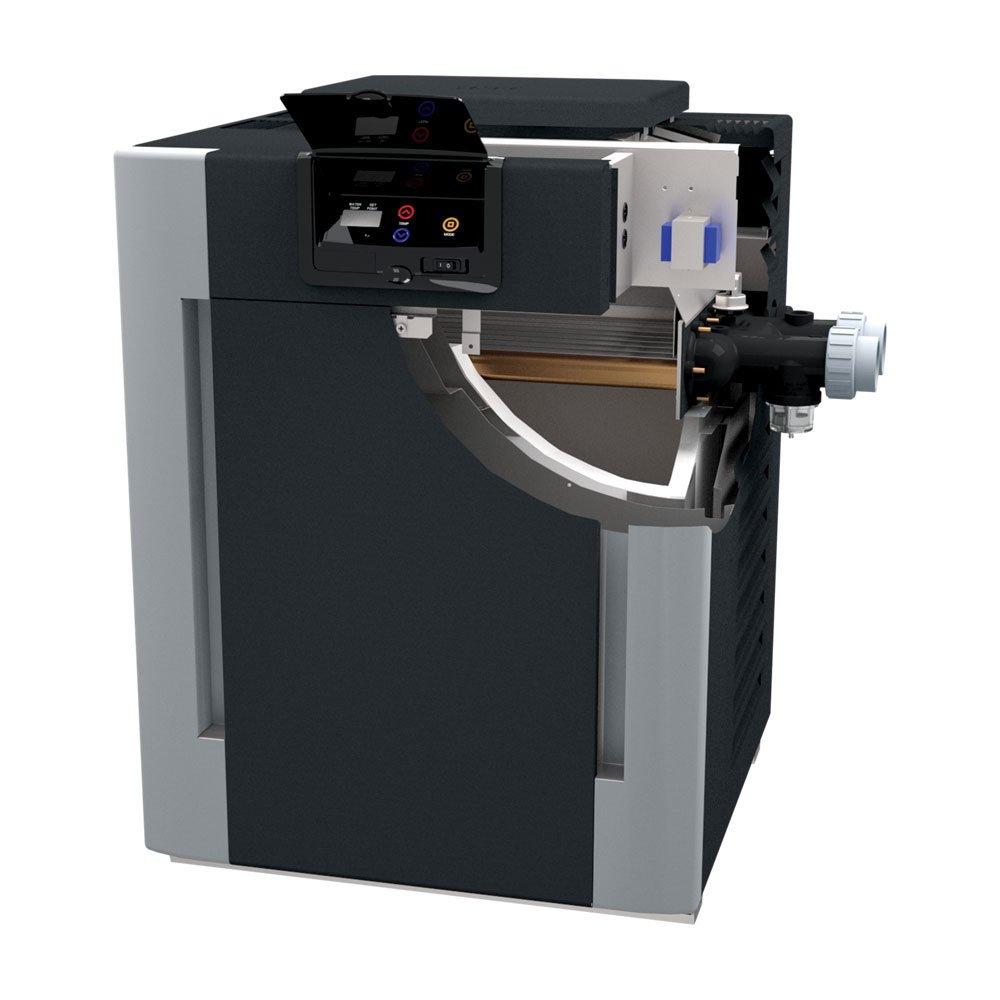

Copper Heat Exchanger
All Raypak ASME gas heaters come standard with .065" wall integral copper finned tubes. This tubing is over 50% thicker in wall thickness than standard tubing. Since thefins are integral to the tube, maximum heat transfer is attained. The fin tubing is made from one piece of extruded copper tube, not from separate fins attached to the copper tubes. Every Raypak ASME has the same robust design tube bundle that is used in Raypak's large gas commercial boilers.

Emission: Standard
Ignition: Electronic
Pool Type: In Ground
Product Type: Pool Heater
Fuel Type: Natural Gas
Heat Exchanger: Copper
Installation Type: Residential
Controls: Digital
Heat Output: 200,000 BTU
Elevation: 2,000 - 6,000 ft
Manufacturer: Raypak
Warranty: 1-Year
Model Number: P-R206A-EN-C

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
