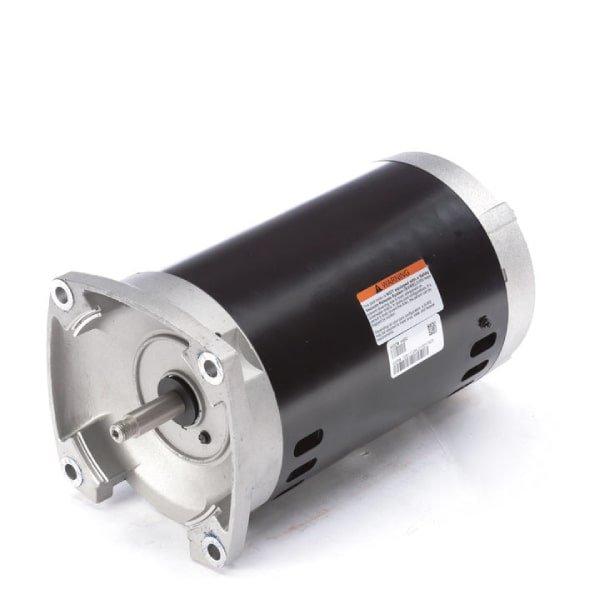

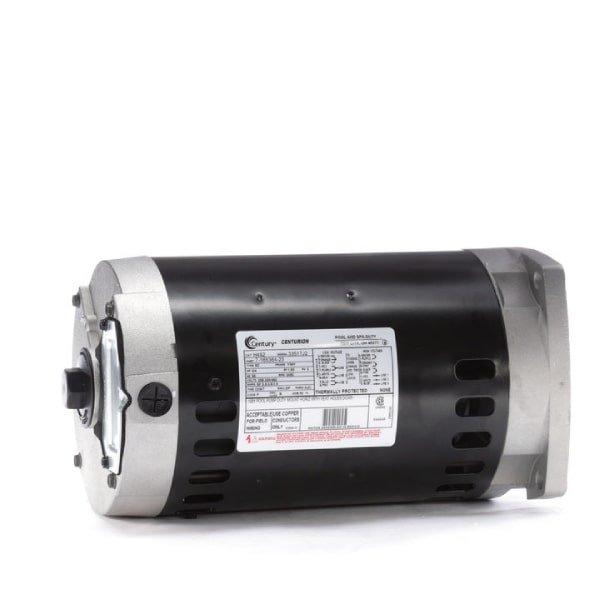

Century A.O. Smith - Centurion 56Y Square Flange 3/4HP 3-Phase Pool and Spa Pump Motor
$389.99
Centurion Square Flange Motors are premium replacement motors for pools and spas.
More Details
Membership Available
Centurion Square Flange Motors are premium replacement motors for pools and spas.
- Ball Bearings
- 60 Hertz
- 50 C Ambient
- Class B Insulation
- 303 Stainless Steel Threaded Shaft
- 3.8-3.6/1.8A 208-230/460V
Centurion Square Flange Motors are premium replacement motors for pools and spas. These motors are protected from water damage and have high-quality ventilation openings. They are equipped with ball bearings and stainless steel threaded shafts for protection against premature deterioration and sport Class B insulation, which is designed to keep motors from overheating. Operating at 60HZ, Centurion Square Flange Pool and Spa Motors are available with a 56Y-Frame, 1/2"P-3HP, and 208-230/460V for ideal performance.
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Horsepower: | 3/4 HP |
| Flange Type: | Square Flange |
| Motor Frame: | 56Y Frame |
| Voltage: | 208 - 230V / 460V |
| Pool Type: | Spa/Hot Tub |
| Speed Settings: | Single Speed |
| Service Factor: | 1.50 - 1.75 |
| Phase Type: | Three Phase |
| Installation Type: | Residential |
| Shaft Type: | Threaded |
| Voltage: | 230V / 460V |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Compatible Pumps: | 011021 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.65 |
| Total Horsepower: | 1.24 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
