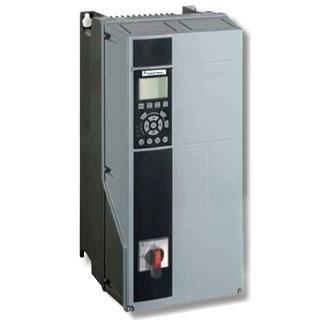

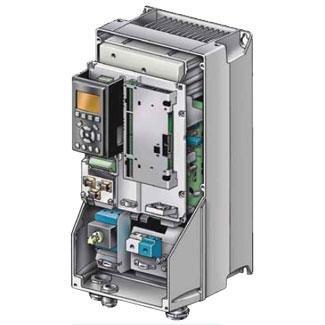

Pentair - Acu Drive XS Variable Frequency Drive 7-1/2HP Three-Phase Outdoor Commercial Pool Pump, 230V
$5,999.99
The Acu Drive offers built-in intelligence for increased performance in all aquatic pump applications.
More Details
Membership Available
The Acu Drive offers built-in intelligence for increased performance in all aquatic pump applications.
- Save up to 60% or more on pump's electricity usage
- Right-size your pump to the exact flow required
- Saves energy with constant flow as the filters gets dirty (with optional flow sensor)
- Off-hour flow management capability
- Does not blow corrosive filter-room air across the circuitry
- High efficiency up to 98% - adjusts drive input voltage for best efficiency point
- Eliminates need for motor starters
- Integrated disconnects, fusing and optional bypasses
- Two-step ramps (Soft Start Feature)
- Real-time clock for time based functions
- Overload trip protection protects motor and Acu Drive from Voltage Spikes and phase unbalance
- Can connect to an IntelliTouch system
- Start-up included with every drive (technical training option available)
- Indoor and outdoor-rated enclosures
- One drive type for the full power range
- For use with 3 phase pumps only
The Acu Drive offers built-in intelligence for increased performance in all aquatic pump applications. Specified to save energy, space, costs and time, the Acu Drive XS offers very fast return on investment. The Acu Drive allows the pump to run at its most efficient point on the curve. Preventative maintenance costs will drop due to motor protection, motor soft start, and a significant decrease in water hammer protecting the shaft and impeller. Up to an additional 5% savings due to the Acu Drive's ability to balance power phase and harmonic suppression. Built with powerful standard and optional features specifically designed for energy optimization, the Acu Drive is perfectly matched with the full line of Pentair Water Commercial Pool and Aquatics' pumps.
| Pump Speed: | Variable Speed |
| Installation Type: | Commercial |
| Pool Type: | In Ground |
| Horsepower: | 7.5 HP |
| Rating Type: | Full-Rated |
| Product Type: | Pool Pump |
| Voltage: | 230V |
| Manufacturer: | Pentair |
| Warranty: | 3-Year |
Three (3) Year Warranty if Installed by Pool Professional, Sixty (60) Day Warranty if Installed by Non-Professional, see Owner's Manual for a full description of warranty claims and coverage details.
