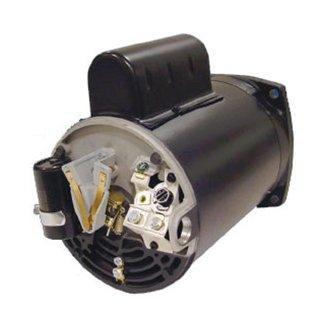

Century A.O. Smith - 56Y Square Flange 1/2HP Full Rated TriStar Replacement Pump Motor, 115/208-230V
$389.99
The Century Hayward TriStar Motor is a brand new replacement motor for your pool and spa.
More Details
Membership Available
The Century Hayward TriStar Motor is a brand new replacement motor for your pool and spa.
- 303 Stainless Steel Shaft
- 60 C Ambient
- Automatic Protector
- Ball Bearing
- Capacitor Start/Capacitor Run
- Class F Insulation
- Open Dripproof
- 8.6/5.0-4.30A
The Century Hayward TriStar Motor is a brand new replacement motor for your pool and spa. Designed with a high-quality service factor for automatic overload protection, it ensures a long and healthy lifespan for years of dependable use. Its open drip proof design prevents water infiltration, and its ball bearings and stainless steel shaft extend the life and quality of the motor. Operating at a single speed, the Century Hayward Tristar motor is Class F Insulated to keep cool. It sports high efficiency for optimal energy savings and is available in 1/2"P to 2HP, with 3450RPM.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Voltage: | 115V / 208 - 230V |
| Horsepower: | 1/2 HP |
| Speed Settings: | Single Speed |
| Phase Type: | Single Phase |
| Service Factor: | 1.75 - 2.00 |
| Flange Type: | Square Flange |
| Installation Type: | Residential |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.99 |
| Total Horsepower: | 1.00 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
