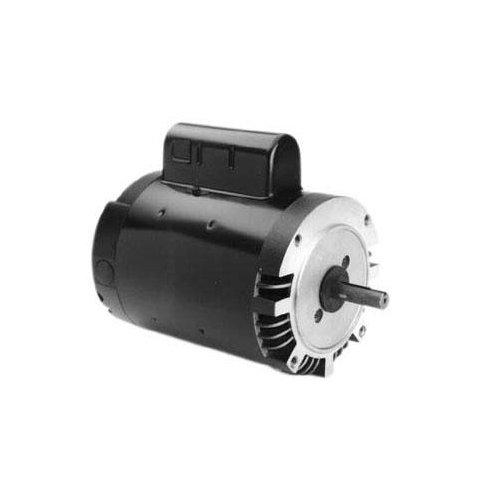

Century A.O. Smith - 56Y C-Face 4 HP Full Rated Pool and Spa Pump Motor, 21.0-19.4A 208-230V

Century A.O Smith  56Y C-Face 4 HP Full Rated Pool and Spa Pump Motor 21.0-19.4A 208-230V

Century A.O. Smith - 56Y C-Face 4 HP Full Rated Pool and Spa Pump Motor, 21.0-19.4A 208-230V

Item No. 620175
Manufacturer SKU: B116
4 out of 5 Customer Rating
The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency More Details

subscription order icon Subscription Available

$999.99

Standard Shipping - Ship To Home
Want it today?

Description

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency
  • Ball Bearings
  • 50 C Ambient
  • 60 Hertz
  • Class B Insulation
  • Rotation: CCW Pump End
  • 304 Bearing Shaft End

Details

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It can replace a Speck Pump and boasts a rigid base and CCW Rotation facing the opposite shaft end for versatile installation. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA ?C? brackets. Withstanding ambient temperatures up to 40C and equipped with a manual overload protector and ball bearings, the Century C-Face Pool and Spa Pump Motor provides long lasting operation. Available in a Full-Rated model with 4HP, it delivers high performance.

Highlights

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Specs

Shaft Type: Special Threaded
Flange Type: C Flange
Pool Type: Spa/Hot Tub
Voltage: 240V
Service Factor: 1.00 - 1.25
Horsepower: 4 HP
Voltage: 208 - 230V
Phase Type: Single Phase
Service Factor: 1.25 - 1.50
Speed Settings: Single Speed
Installation Type: Residential
Rating Type: Full-Rated
Motor Frame: 56 Frame
Energy Efficiency: Standard
Product Type: Pool Motor
Manufacturer: Century A.O. Smith
Warranty: 1-Year


Warranty

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
