U.S. Motors - 56J C-Flange Single Speed 2.25HP Up-Rated Pool and Spa Motor

Item No. 38659
Manufacturer SKU: AST225
4.2 out of 5 Customer Rating

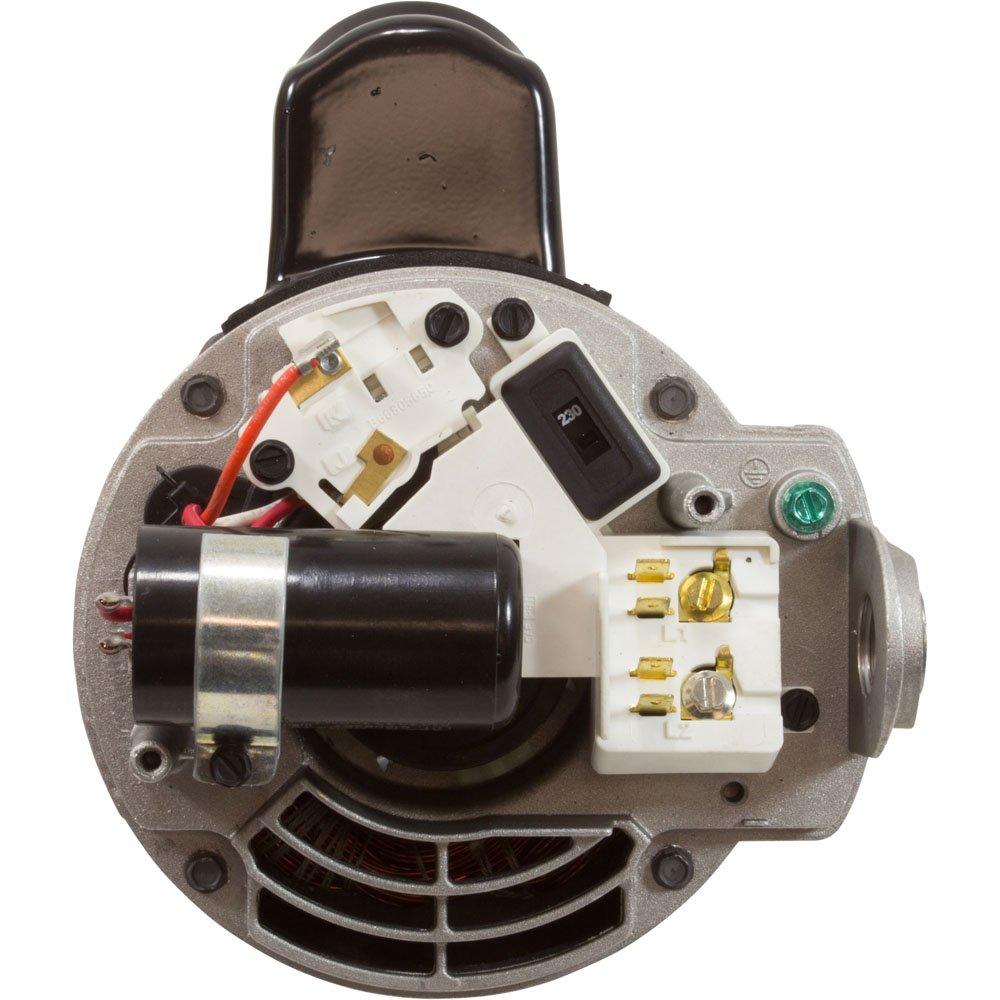

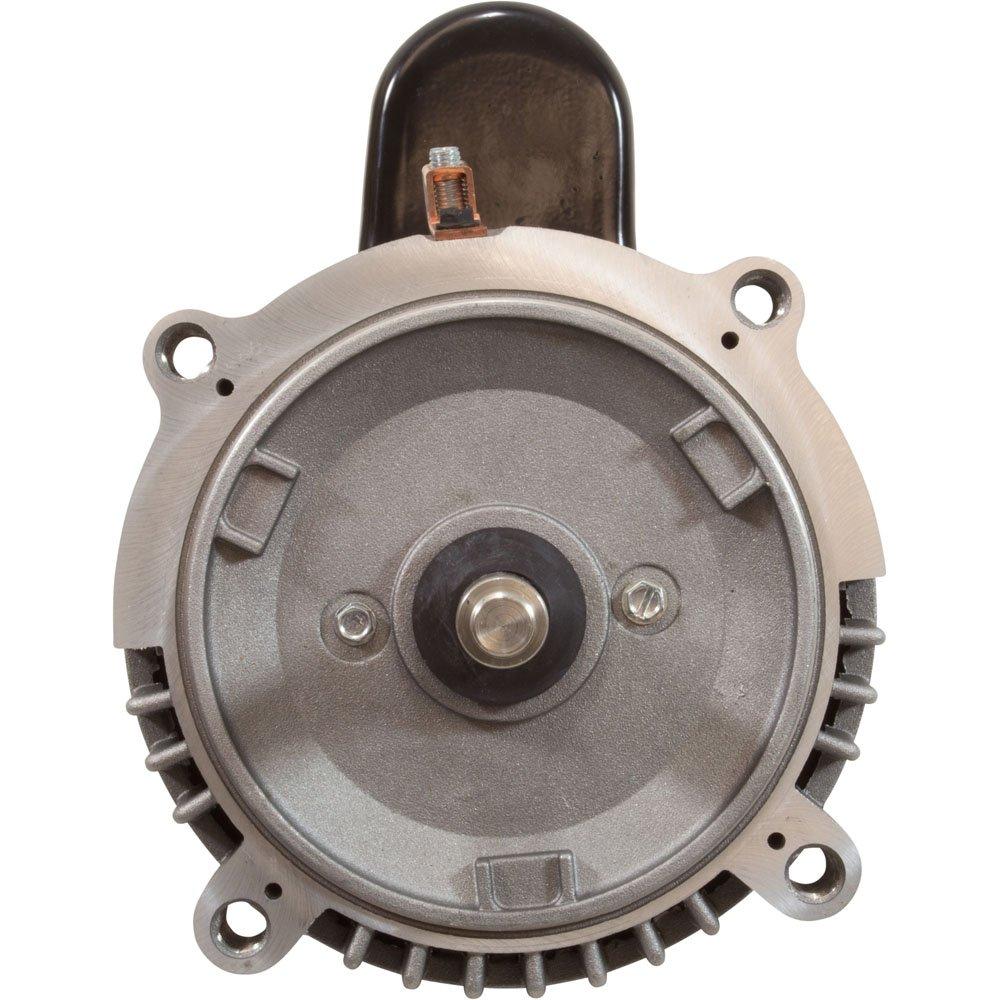

Nidec AST225 56J C-Flange Single Speed 2.25HP Pool Motor is an Aqua-Shield C-Face Severe Duty Motor, 1-Phase, 60 Hz. More Details

subscription order icon Subscription Available

$339.99

How to get it
| Update Cancel
Standard Shipping - Ship To Home.

Description

Nidec AST225 56J C-Flange Single Speed 2.25HP Pool Motor is an Aqua-Shield C-Face Severe Duty Motor, 1-Phase, 60 Hz.
  • Standard efficient pool pump motor
  • 2.25 THP
  • 3450 RPM
  • 60 Frequency
  • 9.5/19.0 THP Amps
  • AST225 Catalog Number
  • 12.75 Length Less Shaft
  • 56J Motor Frame
  • Weight: 29 lbs
  • Aqua-Shield EZ48

Details

Specs

Product Type: Pool Motor
Motor Frame: 56 Frame
Speed Settings: Single Speed
Voltage: 115V / 230V
Manufacturer: U.S. Motors
