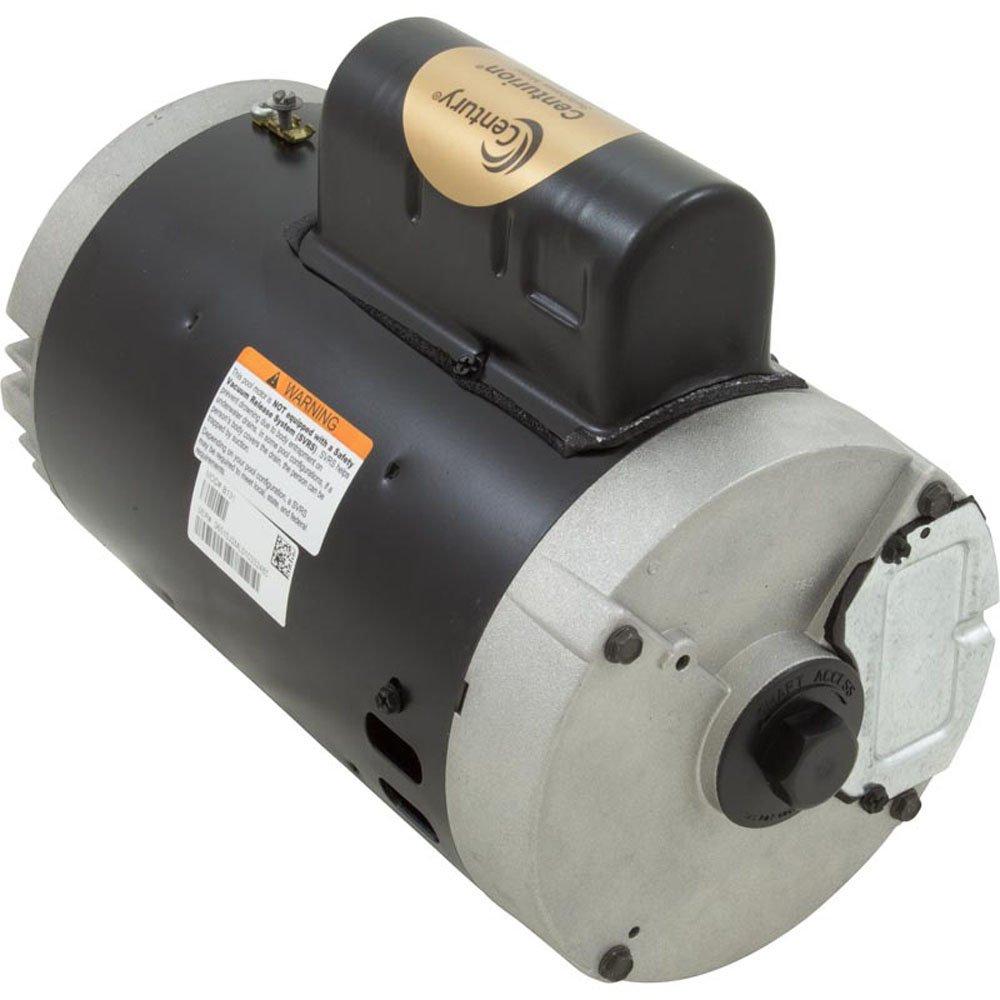

Century A.O. Smith - 56J C-Face 3 HP Full Rated Pool and Spa Pump Motor, 14.1A 230V

Item No. 222467 | Manufacturer SKU: B131
Item No. 222467 | Manufacturer SKU: B131
Century A.O Smith  56J C-Face 3 HP Full Rated Pool and Spa Pump Motor 14.1A 230V
$719.99

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency More Details

subscription order icon Membership Available

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency
  • Threaded shaft
  • Ball Bearings
  • 50 C Ambient
  • 60 Hertz
  • Class B Insulation
  • Rotation: CCW Pump End
  • 304 Bearing Shaft End

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA ?C? brackets. Equipped with an auto overload protector, a stainless steel shaft, and ball bearings, the Century C-Face Pool and Spa Pump Motor provides long lasting operation. Available in Full and Up-Rated models ranging from 1/2"P to 3HP, it delivers high performance.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Flange Type: J Flange
Speed Settings: Single Speed
Installation Type: Residential
Horsepower: 3 HP
Voltage: 240V
Service Factor: 1.25 - 1.50
Pool Type: Spa/Hot Tub
Phase Type: Single Phase
Shaft Type: Threaded
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Compatible Pumps: SHPF3.0
Manufacturer: Century A.O. Smith
Warranty: 1-Year

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
