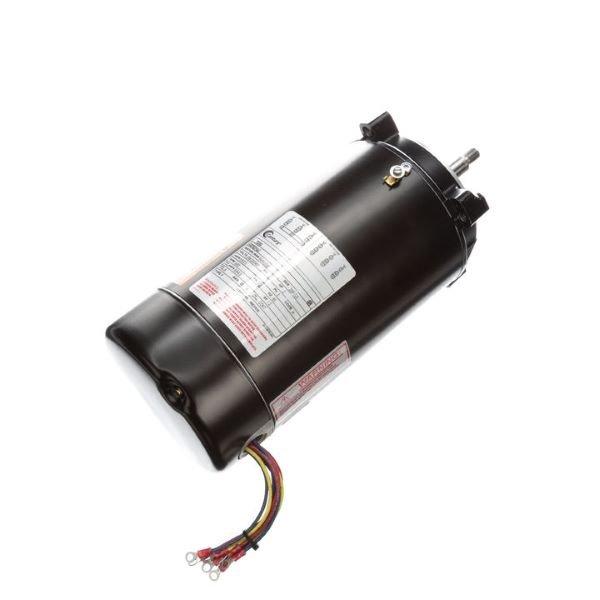

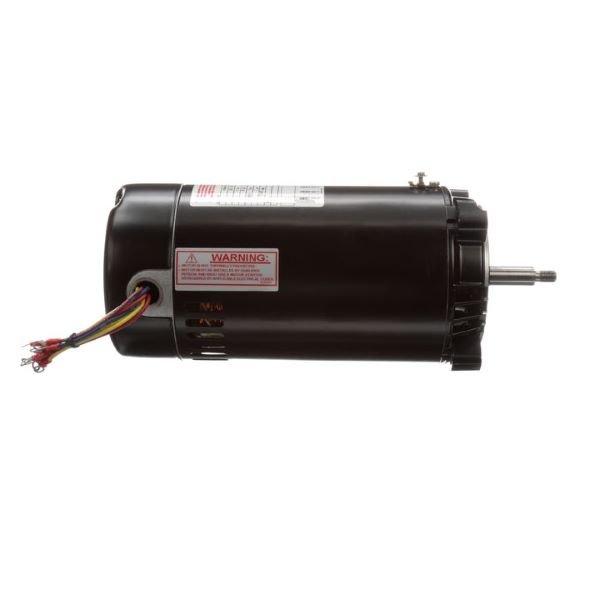

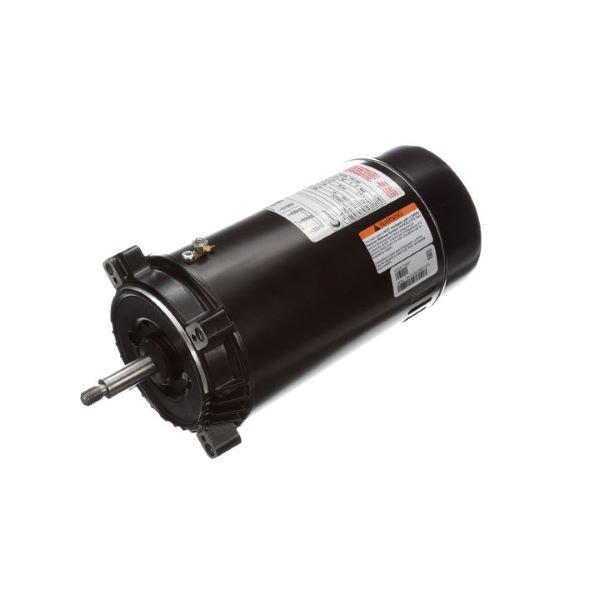

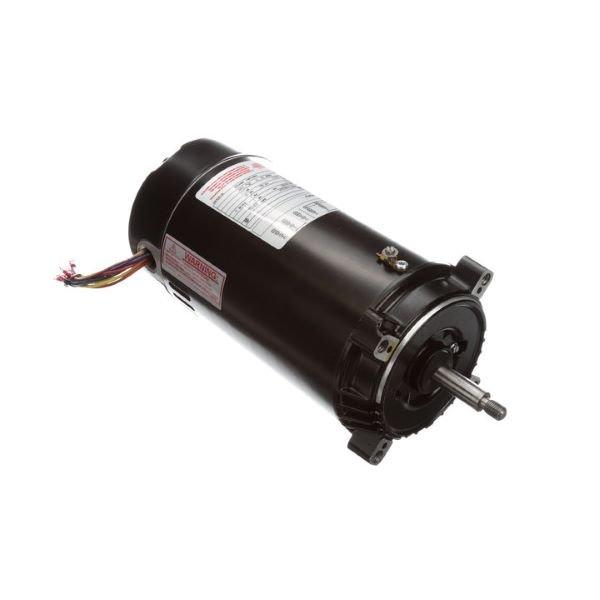

Century A.O. Smith - 56J C-Face 2 HP Three Phase Pool and Spa Pump Motor, 8.6/4.3A 208-230/460V
$599.99
Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance
More Details
subscription.product.label
Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance
- Ball Bearings
- Continuous Duty
- Internal junction box
- Keyed and Stainless Steel Threaded Shafts
- NEMA 56C Mount
- Open Dripproof
- 40C Ambient
- 60 Hertz
Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance. Available in 1/2"P to 2HP, the NEMA C-Face 3-Phase Pump Motor is ideal for moving water efficiently. Its body is made with keyed or threaded stainless steel shafts and its mounting bracket and end frames are constructed from die-cast corrosion resistant aluminum. The NEMA C-Face 3-Phase Pump Motor contains a 1/2" x 14? thread tapped opening for convenient conduit fitting. Supplied with a horizontal canopy, the NEMA C-Face 3-Phase Pump Motor can be altered to suit vertical operation for versatility.
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Service Factor: | 1.00 - 1.25 |
| Voltage: | 208 - 230V / 460V |
| Horsepower: | 2 HP |
| Shaft Type: | Threaded |
| Flange Type: | C Flange |
| Pool Type: | Spa/Hot Tub |
| Flange Type: | J Flange |
| Installation Type: | Residential |
| Voltage: | 230V / 460V |
| Speed Settings: | Single Speed |
| Phase Type: | Three Phase |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
