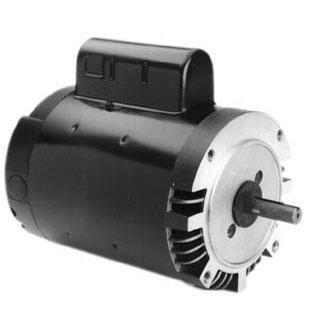

Century A.O. Smith - 56C C-Face 3/4 HP Full Rated Pool and Spa Pump Motor, 6.0/12.0A 115/230V

Item No. 620034 | Manufacturer SKU: B121
3.4 out of 5 Customer Rating
Item No. 620034 | Manufacturer SKU: B121
3.4 out of 5 Customer Rating
Century A.O Smith  56C C-Face 3/4 HP Full Rated Pool and Spa Pump Motor 6.0/12.0A 115/230V
$319.99

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency More Details

subscription order icon Membership Available

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency
  • Keyed shaft
  • Ball Bearings
  • 50 C Ambient
  • 60 Hertz
  • Class B Insulation
  • Rotation: CCW Pump End
  • 304 Bearing Shaft End

The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA ?C? brackets. Equipped with an auto overload protector and ball bearings, the Century C-Face Pool and Spa Pump Motor provides long lasting operation. Available in Full and Up-Rated models ranging from 1/2"P to 4HP, it delivers high performance.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Phase Type: Single Phase
Pool Type: Spa/Hot Tub
Voltage: 240V
Speed Settings: Single Speed
Horsepower: 3/4 HP
Service Factor: 1.25 - 1.50
Shaft Type: Keyed
Flange Type: C Flange
Installation Type: Residential
Rating Type: Full-Rated
Product Type: Pool Motor
Energy Efficiency: Standard
Motor Frame: 56 Frame
Manufacturer: Century A.O. Smith
Warranty: 1-Year
Pump Speed: Single
Service Factor: 1.5
Total Horsepower: 1.13 THP

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
