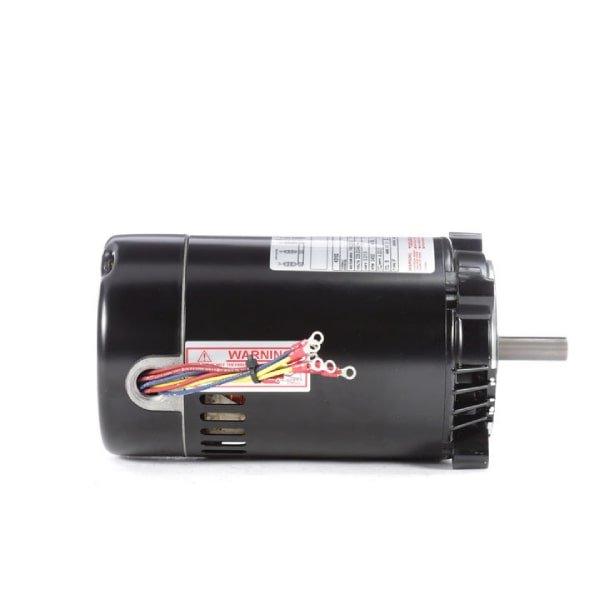

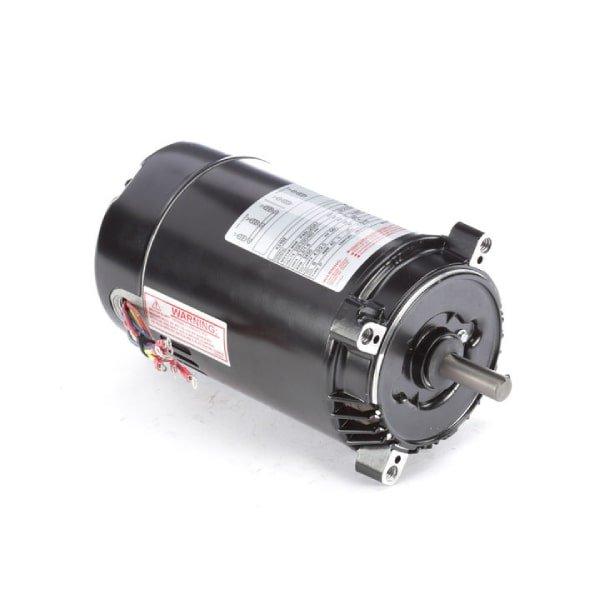

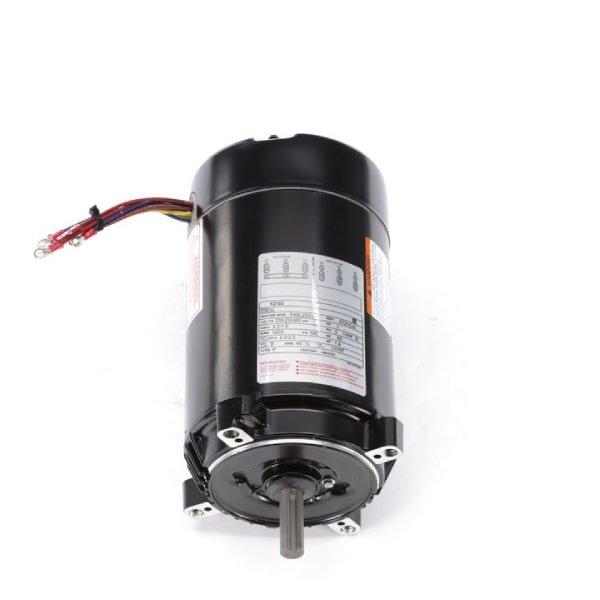

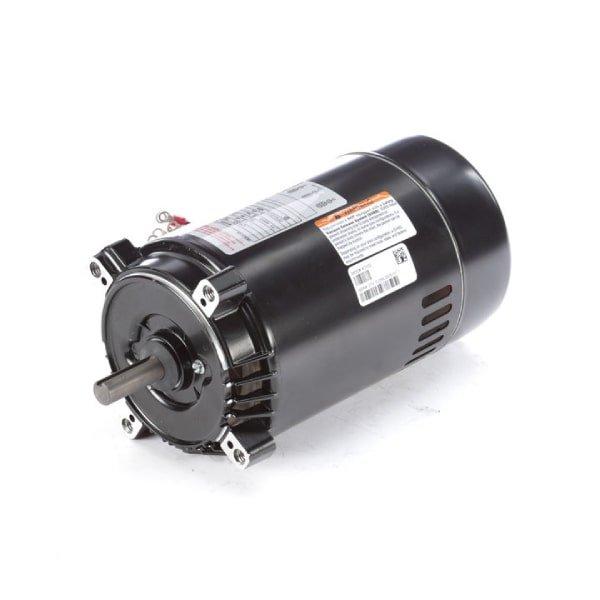

Century A.O. Smith - 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor, 4.0/2.0A 208-230/460V

Item No. 319195 | Manufacturer SKU: K3102
Item No. 319195 | Manufacturer SKU: K3102
Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V
Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V
Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V
Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V
Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V Century A.O Smith 56C C-Face 1 HP Three Phase Pool and Spa Pump Motor 4.0/2.0A 208-230/460V
$399.99

Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance More Details

subscription order icon Membership Available

Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance
  • Ball Bearings
  • Continuous Duty
  • Internal junction box
  • Keyed and Stainless Steel Threaded Shafts
  • NEMA 56C Mount
  • Open Dripproof
  • 40C Ambient
  • 60 Hertz

Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance. Available in 1/2"P to 2HP, the NEMA C-Face 3-Phase Pump Motor is ideal for moving water efficiently. Its body is made with keyed or threaded stainless steel shafts and its mounting bracket and end frames are constructed from die-cast corrosion resistant aluminum. The NEMA C-Face 3-Phase Pump Motor contains a 1/2" x 14? thread tapped opening for convenient conduit fitting. Supplied with a horizontal canopy, the NEMA C-Face 3-Phase Pump Motor can be altered to suit vertical operation for versatility.

Three Phase
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Installation Type: Residential
Shaft Type: Keyed
Speed Settings: Single Speed
Service Factor: 1.25 - 1.50
Pool Type: Spa/Hot Tub
Phase Type: Three Phase
Voltage: 208 - 230V / 460V
Horsepower: 1 HP
Flange Type: C Flange
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Manufacturer: Century A.O. Smith
Warranty: 1-Year

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
