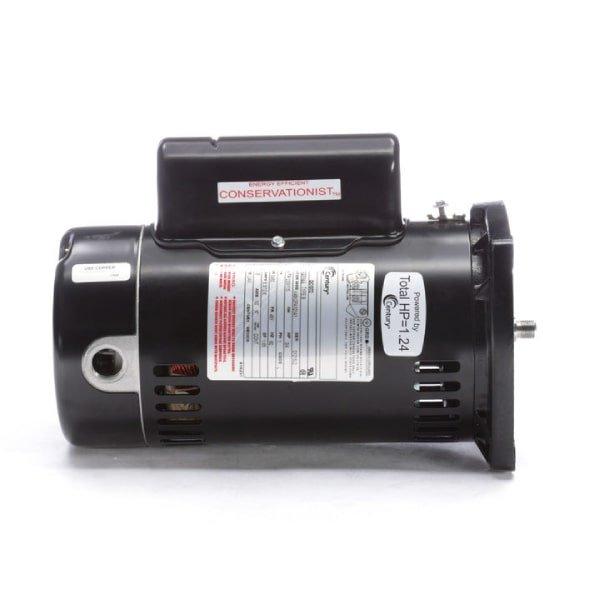

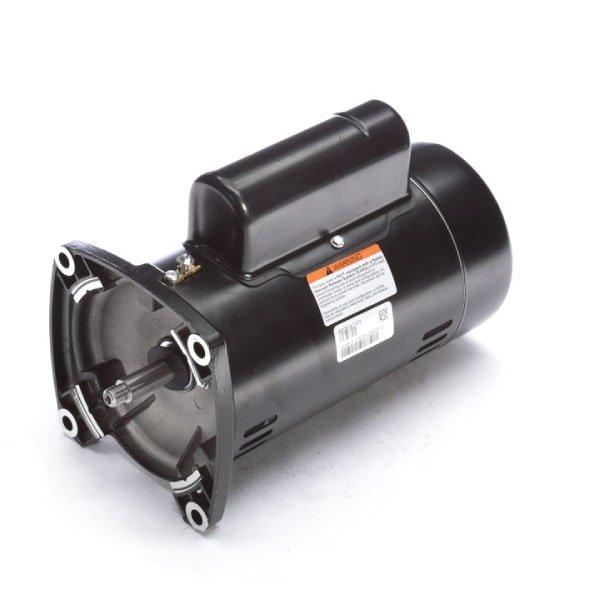

Century A.O. Smith - 48Y Square Flange 3/4 HP Full Rated Pool Filter Motor, 12.6/6.3A 115/230V
$349.99
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.
More Details
Membership Available
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.
- Auto Protector
- Capacitor Start
- Class B Insulation
- Open Dripproof
- Rotation: CCW Pump End
- 303 Stainless Steel Threaded Shaft
- Sealed Ball Bearings
- 50 C Ambient
- 60 Hertz
- UL1081
The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start is run using a ?Conservationist?? motor for enhanced performance. With horsepower ratings ranging from 1/2"P to 3HP, the Two-Compartment Square Flange Pool Filter Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, it's the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor operates at a higher efficiency level than standard efficiency motors. Its aggressive stamina comes from durable bearings and smaller, increased aerodynamic cooling fans that work to eliminate failure rates and unnecessary energy expenditures, ultimately reducing high operating costs
| Energy Efficiency: | High Energy Efficiency |
| Speed Settings: | Single Speed |
| Shaft Type: | Threaded |
| Voltage: | 115V / 230V |
| Horsepower: | 3/4 HP |
| Installation Type: | Residential |
| Motor Frame: | 48Y Frame |
| Voltage: | 120V / 240V |
| Flange Type: | Square Flange |
| Service Factor: | 1.50 - 1.75 |
| Phase Type: | Single Phase |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 48 Frame |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.65 |
| Total Horsepower: | 1.24 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
