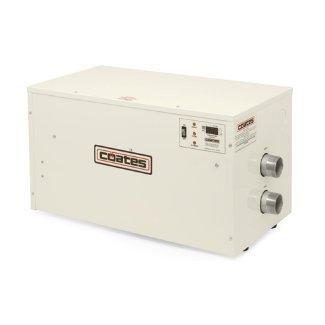

Coates - 34857PHS - PHS Series 57kW, 480V, 69 Amp, 3-Phase Electric Pool Heater
$4,899.99
Coates 34857PHS - PHS Series 57kW, 480V, 69 Amp, 3-Phase Pool Heater. Now standard with an all digital thermostat for more precise control over temperature.
More Details
Membership Available
Coates 34857PHS - PHS Series 57kW, 480V, 69 Amp, 3-Phase Pool Heater. Now standard with an all digital thermostat for more precise control over temperature.
- Incoloy heating elements
- Digital thermostat
- Manual reset hi-limit
- Flow switch
- Element, Hi-limit & flow switch on lights
- Element sequencing of single phase heaters
- Internal protective fusing (units over 48 Amps)
- Important: Instructions for Accepting Your Freight Shipment
Coates 34857PHS - PHS Series 57kW, 480V, 69 Amp, 3-Phase Electric Pool Heater. Now standard with an all digital thermostat for more precise control over temperature. These medium capacity pool and spa heaters feature a built-in flow switch to prevent operation when there is no water flow and allows operation at flow rates between 20 GPM and 80 GPM. An all stainless steel tank for long life and corrosion resistance is also standard.
Dimensions:
28"L x 15"W x 15"H
Weight: 100 lbs
Dimensions:
28"L x 15"W x 15"H
Weight: 100 lbs
| Phase Type: | Three Phase |
| Fuel Type: | Electric |
| Pool Type: | In Ground |
| Ignition: | Electronic |
| Emission: | Standard |
| Installation Type: | Residential |
| Product Type: | Pool Heater |
| Heat Exchanger: | Incoloy |
| Elevation: | 0 - 2,000 ft |
| Controls: | Digital |
| Amp Draw: | 69 Amps |
| Voltage: | 480V |
| Heater kW: | 57kW |
| Manufacturer: | Coates |
| Warranty: | 1-Year |
See Owner's Manual for details
