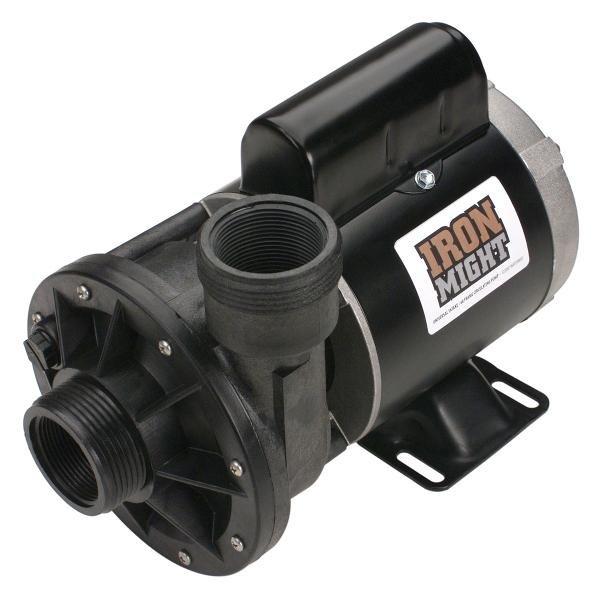

Waterway - 3410030-1E Iron Might 1/15HP Single-Speed Circulating Spa Pump 48-Frame 115V

The Waterway 3410030-1E Iron Might 1/15HP Single-Speed Circulating Spa Pump 48-Frame 115V is the ultimate in efficiency. It uses only 1.3 Amps while offering twenty-four hour circulation, pumping 40 gallons per minute (GPM). Its proven design includes a side discharge and reliable Viton seals. Waterway's commitment to design, innovation and quality American made products makes for a solid combination of style and dependability.

Center vs. Side Discharge Pumps

Swimming pool and spa pumps are classified, in part, according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end, while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps.

What does the frame size on a spa pump mean?

The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor's ID plate, usually marked with an F or FR for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and a 56 frame motor has bolts with spacing more than 4 inches apart.
