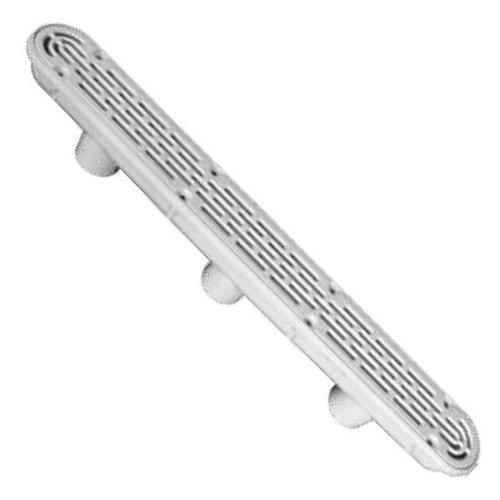

Aquastar - 32in Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover, Tan
$299.99
VBG compliant 32" channel drain flat grate suction outlet cover for concrete pools comes with a three-port manufactured sump.
More Details
Membership Available
VBG compliant 32" channel drain flat grate suction outlet cover for concrete pools comes with a three-port manufactured sump.
- A single, unblockable suction outlet that exceeds the new VGB mandate and ASME/ ANSI A112.19.8a-2008 standard
- #316 Plastic with Stainless Steel Stabilizers screws
- For single or multiple drain use (see installation instructions for plumbing, hydrostatic valve/ drain pipe and single or multi-pump connections)
- Single: Floor: 316 GPM at 3.9 FPS - - - Wall: 208 GPM at 2.6 FPS
- Dual: Floor: 632 GPM at 3.9 FPS - - - Wall: 416 GPM at 2.6 FPS - - - Floor/wall: 242 GPM at 1.5 FPS
- 25.9 square inch opening
- Manufactured from superior UV-resistant engineered polymers

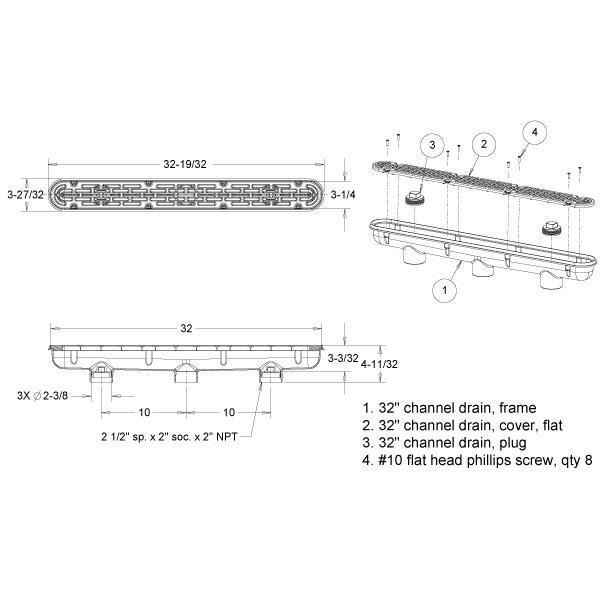

- Three ports: bottom 2-1/2" OD, 2.0" ID S/S; inside 2.0" threaded FPT; two 2" threaded plugs included
- Meets or exceeds NSF 50/ASME/ANSI A112.19.8a-2008 national standards and ASTM G154 UV testing
- Listed with IAPMO R&T
AquaStar 32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump - Tan - 32CDFL108
| Color: | Tan |
| Drain Opening: | 5-50 inches |
| Drain Use: | Multiple |
| Drain Cover Size: | 32 inch Channel |
| Drain Cover Type: | Channel Drain |
| Product Type: | Drain Cover |
| Manufacturer: | AquaStar |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
