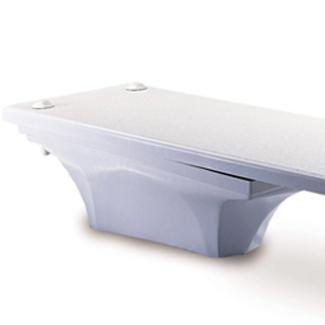

Inter-Fab - 1/2 Meter La Mesa Dive Stand (White) For 8 Ft Board
$415.99
Inter-Fab LAM8 La Mesa 8' Base with Mounting Jig includes the base, jig, and hardware for keeping your board performing at its best.
More Details
Membership Available
Inter-Fab LAM8 La Mesa 8' Base with Mounting Jig includes the base, jig, and hardware for keeping your board performing at its best.
- Includes Base, Jig and Hardware Only
- Passive Base - Spring Feature is Derived from Board
- Durable & Long Lasting Acrylic & Fiberglass Construction
- Available for Use with 6', 8', & 10' Length Boards
- 2 Hole Drill Pattern 12" on Center
Inter-Fab LAM8 La Mesa 8' Base with Mounting Jig is a passive base, meaning the spring feature comes from the board. The jig bolt patter dimensions are 6-1/2" rear mounting bolt to rear mounting bolt and 22" from rear mounting bolt to front mounting bolt. The base is made of acrylic and fiberglass construction giving it a 250 lbs weight limit. The LAM8 accepts a 2 hole drill pattern 12" on center.
The suggested board and board mounting kit for the LAM8 La Mesa Base is DB8WW Duro-Beam 8' Diving Board Only with Matching Tread, White and mounting kit DB-M Mounting Kit for Duro-Beam.
The suggested board and board mounting kit for the LAM8 La Mesa Base is DB8WW Duro-Beam 8' Diving Board Only with Matching Tread, White and mounting kit DB-M Mounting Kit for Duro-Beam.
This product only includes the Base, Jig and Hardware ONLY
| Manufacturer: | Inter-Fab |
| Product Type: | Diving Board |
| Color: | White |
| Size: | 8 ft |
| Warranty: | 3-Year |
| Product Type: | Pool Light |
Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
