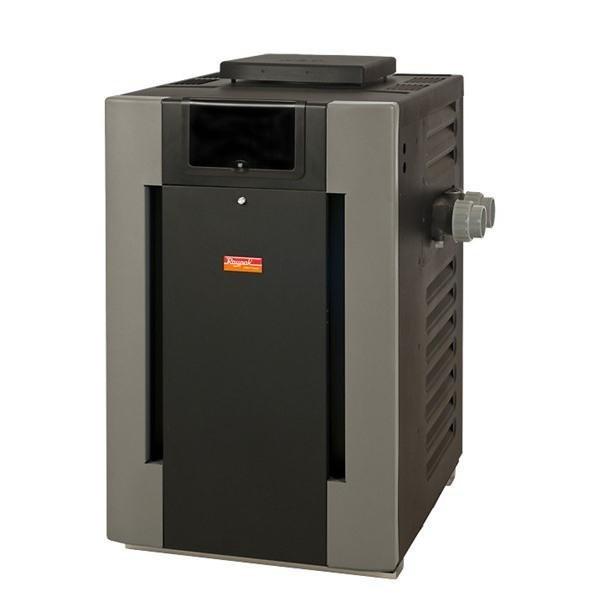

Raypak - 009194 Millivolt Polymer Copper Natural Gas 333K BTU Pool Heater

Item No. 51803 | Manufacturer SKU: 009194
Item No. 51803 | Manufacturer SKU: 009194
Raypak  009194 Millivolt Polymer Copper Natural Gas 333K BTU Pool Heater
Raypak  009194 Millivolt Polymer Copper Natural Gas 333K BTU Pool Heater
$3,745.00

Raypak 009194 Millivolt 333,000 BTU Natural Gas Pool Heater, 0-2,000' Elevation offers simplicity and durability, ensuring optimal heating for your pool & spa. More Details

subscription order icon Membership Available

Raypak 009194 Millivolt 333,000 BTU Natural Gas Pool Heater, 0-2,000' Elevation offers simplicity and durability, ensuring optimal heating for your pool & spa.
  • Part Number: 009194
  • Model Number: P-R336A-MN-C
  • High-wind resistance
  • Corrosion-resistant headers
  • PVC plumbing directly to the heater
  • Small footprint
  • Unitherm governor prevents condensation
  • Completely field serviceable
  • Non-stop performance
  • Model Number: P-R336A-MN-C #50
  • 0-2,000' Elevation
  • Important: Instructions for Accepting Your Freight Shipment

The Raypak Millivolt Copper Natural Gas Heater is engineered to last. Raypak Millivolt heaters are standing pilot gas heaters with a mechanical thermostat and Polymer headers. Looking at the heater, you can see that it's designed different than most heaters on the market. The Raypak 009194 has a unique "pagoda design" to enable the heater to stay effective during high wind speeds and downdrafts. The cabinet of the heater is constructed from a stainless steel, then powder coated with a 7 stage process to outlast the elements and corrosion. Inside the unit, the heater boasts polymer headers and a copper fin tube to allow for quick heat transfer.

The Raypak Millivolt Polymer Copper Natural Gas Heater not only lasts long, but is extremely easy to use and operate. The heater has a built-in Microprocessor Controlled Thermostat to set you pool or spa at the perfect temperature with the push of a button. It's also remote compatible and can connect to any two or three wire remote for added convenience. The heater also contains built-in diagnostic controls to alert users or pool professionals of any issues and the location of these issues.

Instructions for accepting your freight shipment

Mechanical Thermostat
The Raypak Millivolt gas heater comes with one mechanical thermostat. This control allows you to set your swimming pool or spa temperature precisely at your favorite setting.
Built-in Wind Resistant Design
The Raypak Millivolt has the best outdoor design in the market today. No need for fans to combat drafting problems, the Raypak Millivolt was designed for outdoor installations with its exclusive low profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters: falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Smart Design
One look will tell you that the Raypak Millivolt is different. The look is contemporary; the design is advanced, and inside and out it's engineered to last. The attractive forest green and charcoal gray panels complement the latest pool and spa equipment designs. Raypak's original "pagoda top" design will keep the heater operating even in extreme wind conditions and downdrafts.
Copper Heat Exchanger
All Raypak Millivolt gas heaters come standard withintegral copper finned tube. This means that the fin tubing is made from one piece of extruded copper tube. Since the fins are integral to the tube, maximum heat transfer is attained. Every Raypak Millivolt has the same robust design tube bundle that we use in our large gas commercial boilers.

Emission: Standard
Ignition: Millivolt
Elevation: 0 - 2,000 ft
Heat Exchanger: Copper
Installation Type: Residential
Product Type: Pool Heater
Pool Type: In Ground
Fuel Type: Natural Gas
Controls: Analog
Heat Output: 333,000 BTU
Manufacturer: Raypak
Warranty: 1-Year
Model Number: P-R336A-MN-C

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
