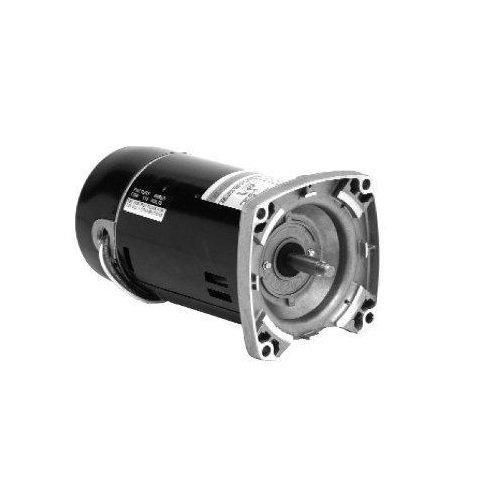

U.S. Motors - Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y Pool Motor

Item No. 38538 | Manufacturer SKU: EB853
Item No. 38538 | Manufacturer SKU: EB853
U.S Motors  Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y Pool Motor
U.S Motors  Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y Pool Motor
$309.99

U.S. Motors Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y Pool and Spa Motor is a reliable motor that provides power and efficiency. More Details

subscription order icon Membership Available

U.S. Motors Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y Pool and Spa Motor is a reliable motor that provides power and efficiency.
  • 1081 Design
  • Shaft Threads 1/2-20 UNF-2A
  • Continuous Duty
  • 50 Degrees Celsius Ambient
  • Voltage Selection Device (Dual Voltage Only)
  • Triple Bearing Protection
  • Switchless Design
  • Service Factor: 1.25
  • RPM: 3450
  • Length without Shaft: 11.74
  • 7.0/14.0A 115V/230V

U.S. Motors Emerson EB853 Square Flange Single Speed 1HP Up-Rated 56Y, 115V/230V Pool and Spa Motor is a reliable motor that provides power and efficiency. Boasting Two Compartment and stainless steel design, it's made to handle harsh pool and spa environments. Protected by sealed ball bearings and an open drip proof enclosure, the Emerson 56 Y-Frame motor is sure to bring you years of use. Its threaded shaft allows for a secure fit while providing a stronger structure. Its large 6.5" frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Hayward TriStar motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Hayward TriStar motor is built to last
Y-Frame
Advanced in its design, the Emerson 56 Y-Frame Hayward TriStar motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 56 Y-Frame Hayward TriStar motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Service Factor: 1.25 - 1.50
Horsepower: 1 HP
Flange Type: Square Flange
Energy Efficiency: High Energy Efficiency
Voltage: 120V / 240V
Pool Type: In Ground
Voltage: 115V / 230V
Speed Settings: Single Speed
Rating Type: Up-Rated
Motor Frame: 56 Frame
Product Type: Pool Motor
Manufacturer: U.S. Motors

See Owner's Manual for details
